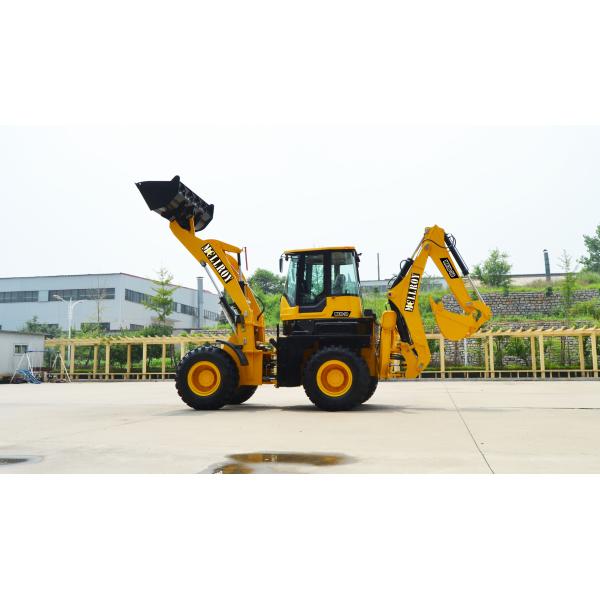

Compact Backhoe Loader MCLLROY MB32-50 Deluxe Model 5000mm Digging
Depth Maximum Return On Investment
1. PRODUCT INTRODUCE
Combining exceptional value for money, superior strength, and a
wealth of innovative features, the MCLLROY MB30-50 solidifies
itself as an exceptional machine from the world's leading backhoe
manufacturer. It excels in terms of productivity, performance, and
efficiency, making it the ideal solution for large fleets, rental
yards, and smaller businesses.
Unmatched Value for Money
The MB30-50 backhoe offers a low cost of ownership and outstanding
strength as standard. Coupled with the industry's best warranty, it
ensures unparalleled return on investment for customers.
Embedded Innovation
This machine incorporates a range of innovative features that have
solidified MCLLROY backhoes as leaders in productivity,
performance, and efficiency.
Exceptional Durability and Support
The MB30-50 is meticulously designed with durability in mind,
allowing it to withstand the demanding conditions of the rental
industry. Additionally, it is accompanied by a superior aftercare
package and an extended warranty, providing exceptional support and
customer satisfaction.
Low Maintenance Engine
Equipped with the MCLLROY eco engine, a highly efficient EU V
Emission engine, the MB32-50 eliminates the need for costly diesel
particulate filter (DPF) technology. This results in reduced
servicing and refueling costs, maximizing efficiency.
Excellence Across Industries
The MB30-50 is the preferred solution for various industries,
including large fleets, rental yards, and owner operators. Its
versatility and performance make it the go-to choice for any field
of operation.
2. ADVANTAGES AND DETAILS
The MCLLROY MB30-50 backhoe loader is meticulously designed to
withstand various challenges, ensuring its durability and
reliability. It incorporates several features to protect the
machine and its components from potential damage.
Protection from Damage
1) Stabilizer cylinder guards are fitted as standard on the MCLLROY
MB30-50 to minimize downtime by protecting the backhoe from
potential costly damage.
2) The boom and dipper hoses are enclosed within the rear
structures of the machine, safeguarding them from the challenges
posed by trenchwork. Stabilizer leg hoses are also protected to
prevent damage caused by material spillage during excavator use.
3) Kingpost hoses are enclosed in a flexible and robust guide,
preventing them from snagging or sustaining damage.
4) The steering cylinders are positioned high up behind the front
axle, providing additional protection when maneuvering over
challenging terrain.
5) These protective measures ensure that the MB30-50 is
well-equipped to handle demanding working conditions, safeguarding
its longevity and minimizing the risk of damage during operation.
3. SPECIFICATION
| Operating Weight | 8200KG |
| Optional Operating Weight | 9000KG |
| Transport Dimension |
| mm L*W*H | 7800×2380×3300 |
| Wheel base | 2750mm |
| Track base | 1650mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1.5m3 |
| Breakout Force | 38KN |
| Loading Lifting Capacity | 3000KG |
| Bucket Dumping Height | 3600mm |
| Bucket Dumping Distance | 1062mm |
| Digging Depth | 52mm |
| Backhoe Capacity(Width) | 0.35m3(700mm) |
| Max. Digging Depth | 5000mm |
| Swing Angle of Excavator Grab | 190o |
| Max. Pulling Force | 39KN |
| Engine |
| Model | YUCHAI YCD4J22T-125 Turbo |
| Type | In Line Direct injection Four-Stroke and Injection Combustion
Chamber |
| Rated Power | 91KW |
| Optional Brand | CUMMINS |
| Model | 4BT3.9-C125 or QSB3.9-C125 |
| Emission | CHINA II or EUROIII |
| Steering System |
| Model of Steering Device | BZZ5-250 |
| Steering Angle | ±36 o |
| Min. turning radius | 5018mm |
| Pressure of the system | 12Mpa |
| Drive Axle |
| Drive Axle Model | 25 Axle |
| Main Transmission Type | Double Reduction |
| Final Reducer | Single Stage Final Reducer |
| Transmission System |
| Torque Converter |
| Model | 315 |
| Type | Single-stage Three Elements |
| Max. Efficiency | 84.4% |
| Inlet Pressure | 0.4Mpa—0.55 Mpa |
| Outlet Pressure | 1.2Mpa—1.5 Mpa |
| Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox |
| Type | Fixed Shaft Power Transmission |
| Oil Pressure of Clutch | 1373Kpa—1569 Kpa |
| Gears | our Gears Ahead, Four Gears Astern |
| Max.Speed | 40Km/h |
| Tyre |
| Model | 17.5-25 |
| Pressure of Front wheel | 0.22 Mpa |
| Pressure of Back Wheel | 0.22 Mpa |
| Brake System |
| Service Brake | Air Over Oil Caliper Brake |
| External Type |
| Self-regulation |
| Self-balance |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Terminating Brake |
| Hydraulic System |
| Digging Power of Excavator Grab | 46.5KN |
| Digging Power of Dipper | 31KN |
| Bucket Lifting Time | 5.4S |
| Bucket Lowering Time | 3.1S |
| Bucket Discharge Time | 2.0S |
OPTIONAL ENGINE:
YUCHAI EU 2 standard engine (91kw/4 cylinders)
Cummins China 2 standard engine 6BT3.9-C130(97kw/6 cylinders)
4. THE OPTIONS ATTACHMENTS
The MCLLROY MB30-50 is a highly versatile machine in its standard
configuration, but its flexibility and productivity can be further
enhanced with our factory-approved optional extras.
4-in-1 Loader Bucket
This highly versatile tool enables you to perform a wide range of
tasks, including digging, dozing, loading, grabbing, grading, and
backfilling. It serves as a comprehensive solution for multiple
applications. Quickhitch options are available for convenient
attachment changes, maximizing efficiency and productivity.
Heavy-Duty Bucket
The heavy-duty bucket is specifically designed with extra ribbed
plates, providing enhanced strength and reducing wear when working
with tougher materials.
Extending Dipper
Opting for the extending dipper feature allows you to increase the
working range of your backhoe loader. The innerbox design ensures
superior lift capacities and facilitates easy field servicing,
providing added convenience and efficiency.
Auxiliary Circuits
MCLLROY offers auxiliary circuits that significantly enhance the
versatility of the MB32-50. The inclusion of a hammer circuit
enables you to utilize breakers, patch planers, and other powerful
attachments, expanding the range of applications for your machine
and increasing its capabilities.
